5mp Hd Face Recognition Camera Module 4k 30fps Usb Analog Camera Digital Camera Module
Description
5mp Hd Face Recognition Camera Module 4k 30fps Usb Analog Camera Digital Camera Module
6Models（B01） | JSK-S8130-V3.0 USB Camera Module |
Image Sensor | 1/2.5” CMOS |
Focal length | 2.8mm（Optional） |
Aperture Range | 2.7 |
Angle of View | 86° |
Object distance | 50‐150cm |
AGC | Auto |
S/N Ratio | ≥41DB |
Shutter Type | Electronic Rolling Shutter |
Wide Dynamic Range | ≥105DB |
White Balance | Auto |
Max Frame Rate | 30fps@1080P |
Image Resolution | 2592 (H) x 1944 (V) |
Protocols | UVC |
Compliance | USB‐IF WHQL CE RoHS |
Video Output | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |
Power Supply | 5V±5% |

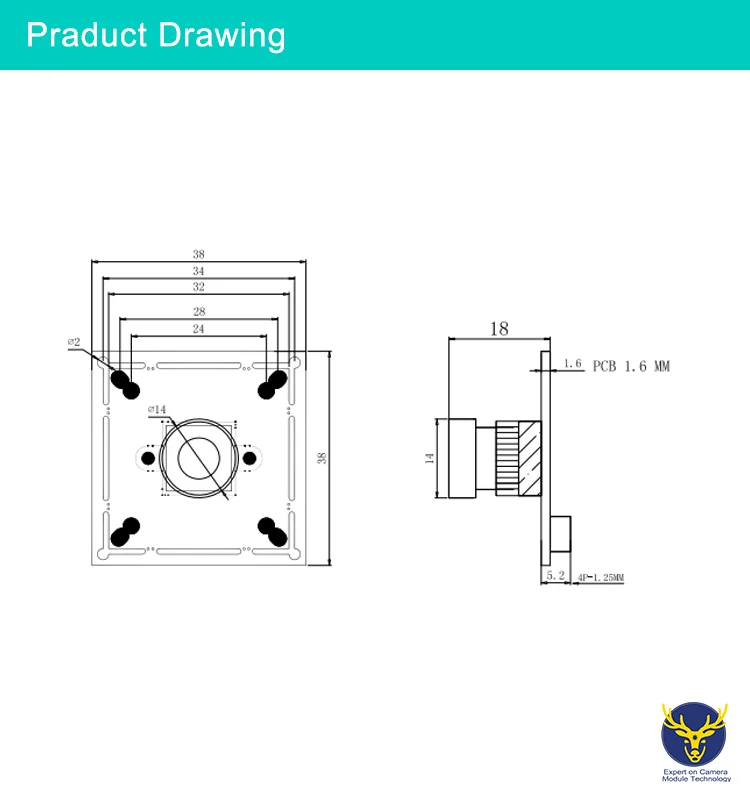

Dimensions(PCBA) | 38mm*38mm*18mm± 0.3mm |
Temperature(Operation) | ‐20~70 ℃ |
Q1：Do you have your own factory?
We are a professional manufacturer of camera module.Q2: Can you supply OEM service?
A：Yes, we can supply OEM service, we can also design according to the drawings provided by our customers.Q3: Can I get a free specimen?
A: Sorry Sir, we don’t provide free specimen and the cost and shipping fee for specimen should be paid by buyers.
Q4: What is your sample delivery time?
A: Sample delivery time is 3~7 days after confirmation.
Q5:What’s the Minimun order quantity?
A: We enjoy growing up with all of our clients whether big or small order.
Q6: What certificate your products have?
A: All of our products have USB‐IF,WHQL,CE and RoHS approval.
Q7: How long is your delivery time?
A: We believe that success is building on a solid foundation and a commitment of delivery. After receiving your payment, 1-3 work days for stock goods and 3-21 work days for other goods according to the quantity.
Q8: Could you give me a discount?
A: Our products always have competitive price to offer our customer, large quantity equal best price.
Q9:What operating system your cameras support?
A:Usually the camera modules can work with Windows system with freedriver, it is a play and plug camera module, it can also work with some Andorid and Linux system with standard UVC protocol.
Additional information
| Resolution | 2592 (H) x 1944 (V) |
|---|---|
| Application | Outdoor, Indoor |
| Wide Dynamic Range | ≥105dB |
| S/N Ratio | ≥41dB |
| Video Format | MJPG/YUY2 |
| AEC/AGC/White Balance | Auto |
| Object Distance | 50-150cm |
| Video Resolution | 30fps@1080P |
| Image Sensor | 1/2.5" CMOS |
| Product name | JSK-S8130-V3.0 USB Camera Module |
| Customized support | Software reengineering, Customized logo, Online technical support |
| Data Storage Options | Full HD |
| Network | USB |
| Video Compression Format | MJPG |
| Function | Built-in Mic, NIGHT VISION, Wide Angle, Built-in Siren |
| Style | USB camera module |
| Sensor | CMOS |
| Special Features | Face detection, NIGHT VISION, Built-in Siren, Face Recognition, Face recognition |
| Warranty | 1 Year |
| Model Number | JSK-S8130-V3.0(B01) |
| Brand Name | Jinshikang |
| Place of Origin | Guangdong, China |
| 5MP CMOS Face recognition Video intercom | 1080P Wide Dynamic Range access control USB2.0 Camera Module |
