Auto Focus Laptop Ov5640 Cmos Face Recognition Pcb Camera Module Uvc Protocol 5mp 2k Usb2.0 30fps@1080p Mjpg,Yuy2
Description
25Models | JSK-MIC-Camera-V2.1 USB Camera Module |
Image Sensor | OV5640(1/4” CMOS) |
Focal length | 3.8mm(Optional) |
Aperture Range | 2.8 |
Angle of View | 68° |
Object Distance | 50-150cm |
AGC | Auto |
Pixel Size | 1.4um |
Shutter Type | Electronic Rolling Shutter |
Wide Dynamic Range | TBD |
Exposure Mode | Auto |
White Balance | Auto |
Video Resolution | 30fps@1080P |
Image Resolution | 2592 (H) x 1944 (V) |
Protocols | UVC |
Compliance | USB-IF WHQL CE RoHS |
Video Format | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |
Power Supply | 5V±5% |

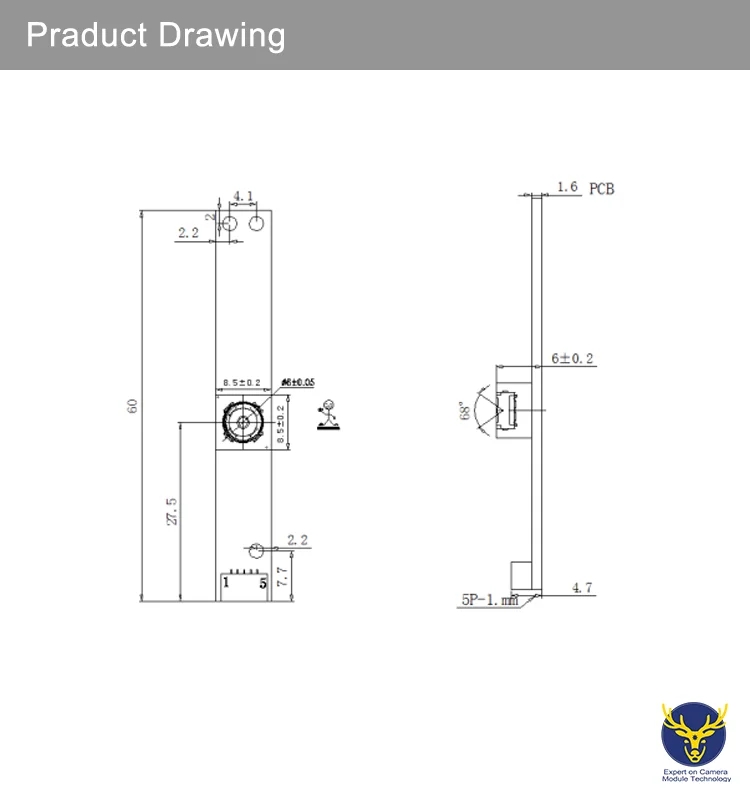

Dimensions(PCBA) | 60mm x 8mm x 6mm±0.2mm |
Temperature(Operation) | ‐20~70 ℃ |
We are a professional manufacturer of camera module.Q2: Can you supply OEM service?
A：Yes, we can supply OEM service, we can also design according to the drawings provided by our customers.
Q3: Can I get a free specimen?
A: Sorry Sir, we don’t provide free specimen and the cost and shipping fee for specimen should be paid by buyers.
Q4: What is your sample delivery time?
A: Sample delivery time is 3~7 days after confirmation.
Q5:What’s the Minimun order quantity?
A: We enjoy growing up with all of our clients whether big or small order.
Q6: What certificate your products have?
A: All of our products have USB‐IF,WHQL,CE and RoHS approval.
Q7: How long is your delivery time?
A: We believe that success is building on a solid foundation and a commitment of delivery. After receiving your payment, 1-3 work days for stock goods and 3-21 work days for other goods according to the quantity.
Q8: Could you give me a discount?
A: Our products always have competitive price to offer our customer, large quantity equal best price.
Q9:What operating system your cameras support?
A:Usually the camera modules can work with Windows system with freedriver, it is a play and plug camera module, it can also work with some Andorid and Linux system with standard UVC protocol.
Additional information
| Type | Camera Module |
|---|---|
| Application | Indoor, Outdoor |
| Interface | USB1.1/USB2.0 |
| S/N Ratio | 39DB |
| AEC/AGC/White Balance | Auto |
| Video Format | MJPG/YUY2 |
| Pixel Size | 1.4um |
| Video Resolution | 30fps@1080P |
| Image Sensor | OV5640(1/4" CMOS) |
| Product name | JSK-MIC-Camera-V2.1 |
| Customized support | Online technical support, OEM, ODM, Software reengineering |
| Data Storage Options | Full HD, SD Card, Micro SD card, Cloud, Memory Card |
| Resolution | 2592 (H) x 1944 (V) |
| Video Compression Format | MJPG, YUY2 |
| Function | Waterproof / Weatherproof, Wide Angle, Vandal-proof, Face Recognition |
| Network | ONVIF, SDK |
| Special Features | Face Recognition, Motion Detection, Vandal-proof, Waterproof / Weatherproof |
| Warranty | 1 Year |
| Model Number | JSK-MIC-Camera-V2.1 |
| Brand Name | JinShiKang |
| Place of Origin | Guangdong, China |
| Style | Mini camera, Camera Module |
| Sensor | CMOS |
| OEM Full-HD 1080P Face recognition | 5MP 30fps@1080P USB2.0 Camera Module |
