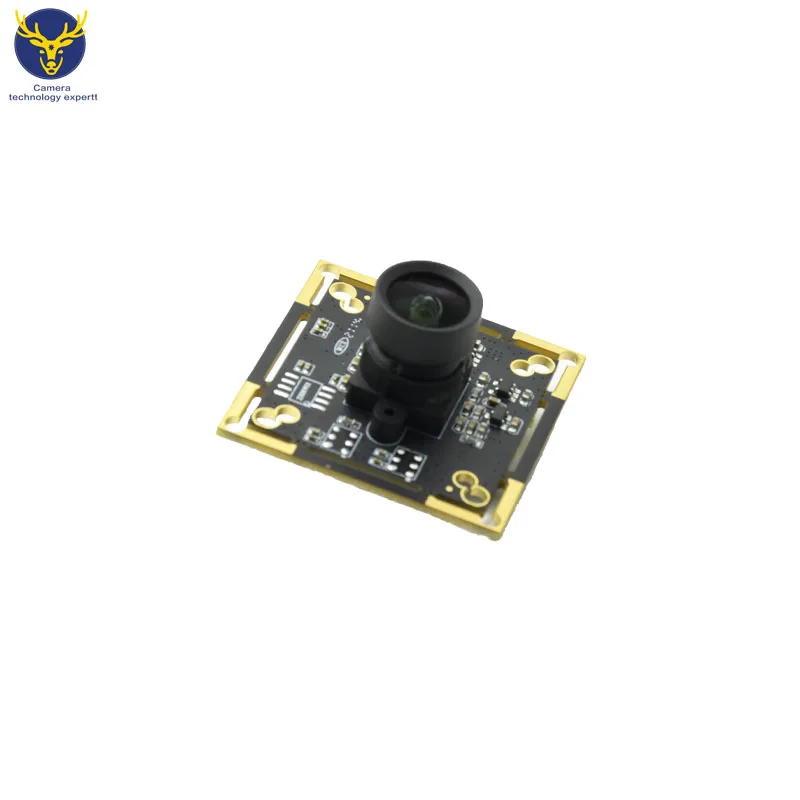

8mp 3864 (h) X 2218 (v) Miniature Camera Module 4k Usb Board Camera For Android Linux Windows

Description

8mp 3864 (h) X 2218 (v) Miniature Camera Module 4k Usb Board Camera For Android Linux Windows

Hf1223e8d2c9f4f2a9d9055421abc4ccao
If you want free samples, you can contact our customer service for consultation
Specification
15Models(B01)
JSK-SE075-V1.0 USB Camera Module
Image Sensor
1/3.2” CMOS
Focal length
2.88mm(Optional)
Aperture Range
2.7
Angle of View
D=86° H=73° V=59°
Object Distance
50-150cm
AGC
Auto
Pixel Size
1.4um
Shutter Type
Electronic Rolling Shutter
Color Filter
RGB Bayer pattern
Exposure Mode
Auto
White Balance
Auto
Frame Resolution
15fps@3864 (H) x 2218 (V)
Image Resolution
3864 (H) x 2218 (V)
Protocols
UVC
Compliance
USB-IF WHQL CE RoHS
Video Format
MJPG/YUY2
Interface
USB1.1/USB2.0
Power Supply
5V±5%
Dimensions(PCBA)
38mm*38mm*18mm±0.3mm
Temperature(Operation)
‐20~70 ℃
H418a3b5e308248248e402fade6258ea3n

1. First-class quality and advanced technology: Our factory is a professional manufacturer of CMOS camera module products. We provide high-quality and compatible CMOS camera module products for customers’ different requirements and wishes.
2. Specializing in the production of camera modules with different pixels: CIF, VGA, 2 million, 3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. We can also do it according to the specific requirements of customers.
3. Widely used: mobile phones, artificial intelligence, drones, smart homes, iris reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
4. Different sensors: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, Sony sensor and some sensors made in China. We also have SMT production lines, CSP production lines and COB production lines.

Product Description
H238069a224474e17bf304c578fb40fbco
H9fffad3c323147c2abab03c7050a1882p
Hcb5c30d6b20f43a597f1863c189ca63bF
Hae54eb85f47e453d87d072a9e4ec86f6l
H958da73b7ed1450d9631bd47071a78ceX
H3c2bf06a172545b0a3d9312f43ee51488
H01e7d6faa94c46b78d88dd7c26a3e3d7Q
Hd87cfed6ab0a4abf9817f0f8b53164f4q
The main outdoor scene, the ultimate design, waterproof and riot.
The first outdoor three-camera, fast and high-precision recognition under starlight and strong backlight environment.
It is widely used in buildings, enterprises, office buildings, financial outlets, protection of key areas and other places.
The product function intelligently passes through automatically grabs the image, realizes accurate recognition, and passes quickly. Counterfeit detection supports binocular anti-photo and electronic screen attack detection, effectively defending against attacks such as 3D printing, electronic screens,
videos, pictures, masks, and hoods.
Authority management personnel pass in time-limited areas; visitors pass in time-limited areas; blacklist personnel pass control.
Data encryption ensures the security of all kinds of information. Starlight/backlight recognition can be accurately and quickly recognized under outdoor starlight (0.01Lux) or under backlight on a sunny day.
ID card information reading ID card reader can quickly and accurately read the photo, text and other information in the ID card chip.
Person ID comparison compares the scene image with the read ID photo to determine whether the person and ID are the same.
The counterfeit detection equipment can detect whether it is operated by a real person, and can effectively distinguish high-definition photos, PS, 3D models, face-changing and other counterfeit frauds.
Multi-person detection When the camera detects a multi-person scene, it can automatically match the most similar data for comparison.
Certifications
H455e846115d24d3aa95c01126cda815a8
Exhibition
H45a06decbf984244a9b1b0968c825039t
H53f7981bf8b348dbae8a9f3a864a5bd74
H00be4eec4616463c937efda1cf105dafd
Packing & Delivery
H76497634c8cc4c0cb717c0b27f7f67192
H22c3fd58ba2741b49cd9644b5a94d53bh
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
What can our company do?
Mainly do USB and MIPI customization (spot styles can also be ordered directly)How many days does it take for us to customize the camera module?
Samples can be prepared within 15-20 days after you confirm the complete information

What is the approximate cost of our design and mold opening?
According to your customized style, the cost is about 200-500 US dollars

What information do you need to provide when customizing the MIPI camera?
1. You need to provide the structural size of the camera module
2. Pin definition of your module
3. The starting pin of your module
4. The imaging direction of your module
5. Whether it matches with your motherboard

If you are looking for a USB interface module in our shop but what you need is MIPI interface, can you change the USB interface to MIPI interface?
Yes, sure

Heeed401674b84069aea2ec72c0ebdb21I

Additional information

Type

Camera Module

Application

Indoor, Outdoor

Interface

USB1.1/USB2.0

Video Format

MJPG/YUY2

AEC/AGC/White Balance

Auto

Pixel Size

1.4um

Image Resolution

3864 (H) x 2218 (V)

Video Resolution

15fps 3864 (H) x 2218 (V)

Object Distance

50-150cm

Image Sensor

1/3.2" CMOS

Product name

JSK-SE075-V1.0 USB Camera Module

Customized support

Online technical support, OEM, ODM, Software reengineering

Data Storage Options

Full HD

Resolution

8MP, 1080P, 720P, 3864 X 2218

Video Compression Format

MJPG, YUY2

Function

Waterproof / Weatherproof, Wide Angle, Vandal-proof, Face Recognition

Network

ONVIF, SDK

Special Features

NIGHT VISION, Face Recognition, Motion Detection, Vandal-proof, Waterproof / Weatherproof

Warranty

1 Year

Model Number

JSK-SE075-V1.0(B01)

Brand Name

JinShiKang

Place of Origin

Guangdong, China

Style

Mini camera, Camera Module

Sensor

CMOS

OEM 4k high-definition

8 million pixels USB driver-free camera module
