New Arrivals Oem Camera Module 2mp Cmos 1080p Hd Usb 2.0 Auto Full Monocular Miniature 1920 (h) X 1080 (v) 1/2.7
Description
New Arrivals Oem Camera Module 2mp Cmos 1080p Hd Usb 2.0 Auto Full Monocular Miniature 1920 (h) X 1080 (v) 1/2.7
Specification
36Models（B12） | JSK-1021-V1.0 USB Camera Module |
Image Sensor | 1/2.7” CMOS |
Focal length | 4.3mm(Optional) |
Aperture Range | 2.4 |
Angle of View | 78° |
Object distance | 50‐150cm |
AGC | Auto |
S/N Ratio | ≥39DB. |
Shutter Type | Electronic Rolling Shutter |
Wide Dynamic Range | ≥110DB |
White Balance | Auto |
Max Frame Rate | 30fps@1080P |
Image Resolution | 1920 (H) x 1080 (V) |
Protocols | UVC |
Compliance | USB‐IF WHQL CE RoHS |
Video Output | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |
Power Supply | 5V±5% |
Dimensions(PCBA) | 60mm*10mm*9.5mm± 0.3mm |
Temperature(Operation) | ‐20~70 ℃ |
Product Description

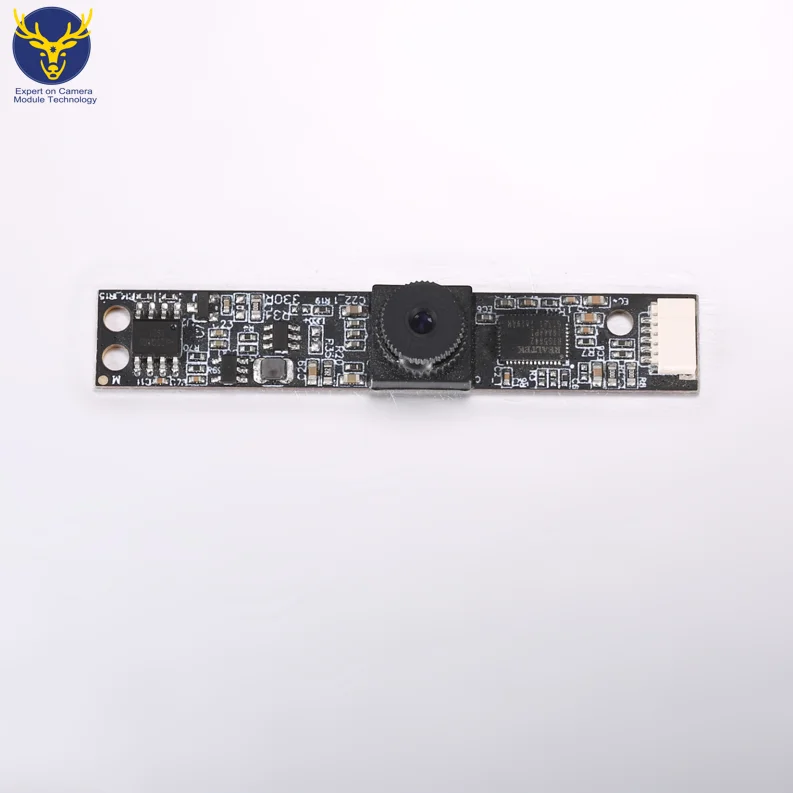

JSK-1021-V1.0(B12)
Monocular 108P HD USB 2.0 Camera Module
2 Mega Pixels High Resolution Wide Dynamic Range Color Camera Module for Biometric Access Control System
Features:
* High Definition 1920(H)*1080(V) resolution USB2.0 Camera module
* HM2131-AWA(1/2.7” CMOS) sensor for high quality image
* With HD 78 degree no distortion lens(Optional)
* High frame rate – MJPEG 1920*1080 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 60mm*10mm*9.5mm for embedded application
* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
Specially designed for the research and development of face recognitionHigh-precision algorithm face dataAccurately identify some key construction parts such as eyes, ears and nose
Adopt USB communication interfaceTransmission speed is greater than 400MB/SSay goodbye to the traditional slow lag
Use 1/2.7” inch COMS Sensor
High signal-to-noise ratio
2 Mega Pixels
It supports 30FPS at 1920*1080 resolution, and the imaging quality is quite excellent
Aperture：F2.4
FOV: 78 Degree
Wide Dynamic Range: ≥110dB
A wide range of different FOV Lenses are available
Certifications
Production Process
1. Raw Meterials
2. Workshop
3. Clean Booth
4. Sensor Cleaning
5. Assemble
6. Focusing
7. Temperature Test
8. Aging Test
Company Profile
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Why choose us?1. Leading and professional manufacturer in CCTV industry since 2005.2. 6 years of R&D and production experience3. OEM & ODM4. High Quality(material)5. Competitive and reasonable price6. Fast Delivery7. Best pre-sale, sale and after-sale service8. 2 year warranty and lifetime maintenance9. CE,FCC,RoHS,ISO9001-2008 passed
Additional information
| Type | Camera Module |
|---|---|
| Application | Indoor, Outdoor |
| Wide Dynamic Range | ≥110dB |
| S/N Ratio | ≥39DB |
| Video Format | MJPG/YUY2 |
| AEC/AGC/White Balance | Auto |
| Object Distance | 50-150cm |
| Video Resolution | 30fps@1080P |
| Image Sensor | 1/2.7"CMOS |
| Product name | JSK-1021-V1.0 USB Camera Module |
| Customized support | Online technical support, OEM, ODM, Software reengineering |
| Data Storage Options | Full HD, Cloud |
| Resolution | 1920 (H) x 1080 (V) |
| Video Compression Format | MJPG, YUY2 |
| Function | Wide Angle, Face Recognition, Face Detection |
| Network | SDK, USB |
| Special Features | Face Recognition, Human Motion Tracking, Motion Detection |
| Warranty | 1 Year |
| Model Number | JSK-1021-V1.0(B12) |
| Brand Name | JinShiKang |
| Place of Origin | Guangdong, China |
| Style | Mini camera, Camera Module |
| Sensor | CMOS |
| 2MP Full-HD 1080P Wide Dynamic Range | Face recognition cmos camera module |
