Factory Direct 1mp Hd 720p Micro Camera Embedded Board Cmos Usb 2.0 Camera Module Waterproof
Description
Factory Direct 1mp Hd 720p Micro Camera Embedded Board Cmos Usb 2.0 Camera Module Waterproof
If you want free samples, you can contact our customer service for consultation.
41Models（I01） | JSK-0A24-V3.0 USB2.0 Camera Module |
Image Sensor | 1/4” CMOS |
Focal length | 4.3mm(optional) |
Aperture Range | 2.4 |
Angle of View | 76° |
Object distance | 100cm |
AGC | Auto |
Pixel Size | 1.75um |
Shutter Type | Electronic Rolling Shutter |
Color Filter | RGB Bayer pattern |
White Balance | Auto |
Max Frame Rate | 30fps@720p |
Image Resolution | 1280 (H) x 720 (V) |
Protocols | UVC |
Compliance | USB‐IF WHQL CE RoHS |
Video Output | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |
Power Supply | 5V±5% |
Dimensions(PCBA) | 60mm*8mm*6.2mm± 0.3mm |
Temperature(Operation) | ‐20~70 ℃ |
1. First-class quality and advanced technology: Our factory is a professional manufacturer of CMOS camera module products. We provide high-quality and compatible CMOS camera module products for customers’ different requirements and wishes.
2. Specializing in the production of camera modules with different pixels: CIF, VGA, 2 million, 3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. We can also do it according to the specific requirements of customers.
3. Widely used: mobile phones, artificial intelligence, drones, smart homes, iris reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
4. Different sensors: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, Sony sensor and some sensors made in China. We also have SMT production lines, CSP production lines and COB production lines.
2. Specializing in the production of camera modules with different pixels: CIF, VGA, 2 million, 3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. We can also do it according to the specific requirements of customers.
3. Widely used: mobile phones, artificial intelligence, drones, smart homes, iris reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
4. Different sensors: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, Sony sensor and some sensors made in China. We also have SMT production lines, CSP production lines and COB production lines.
Product Description

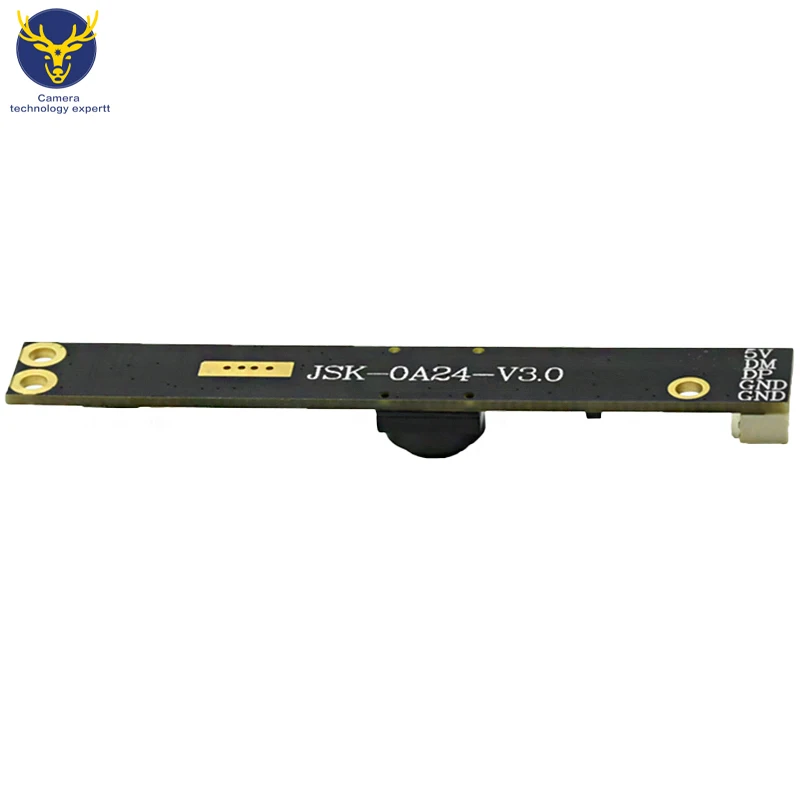

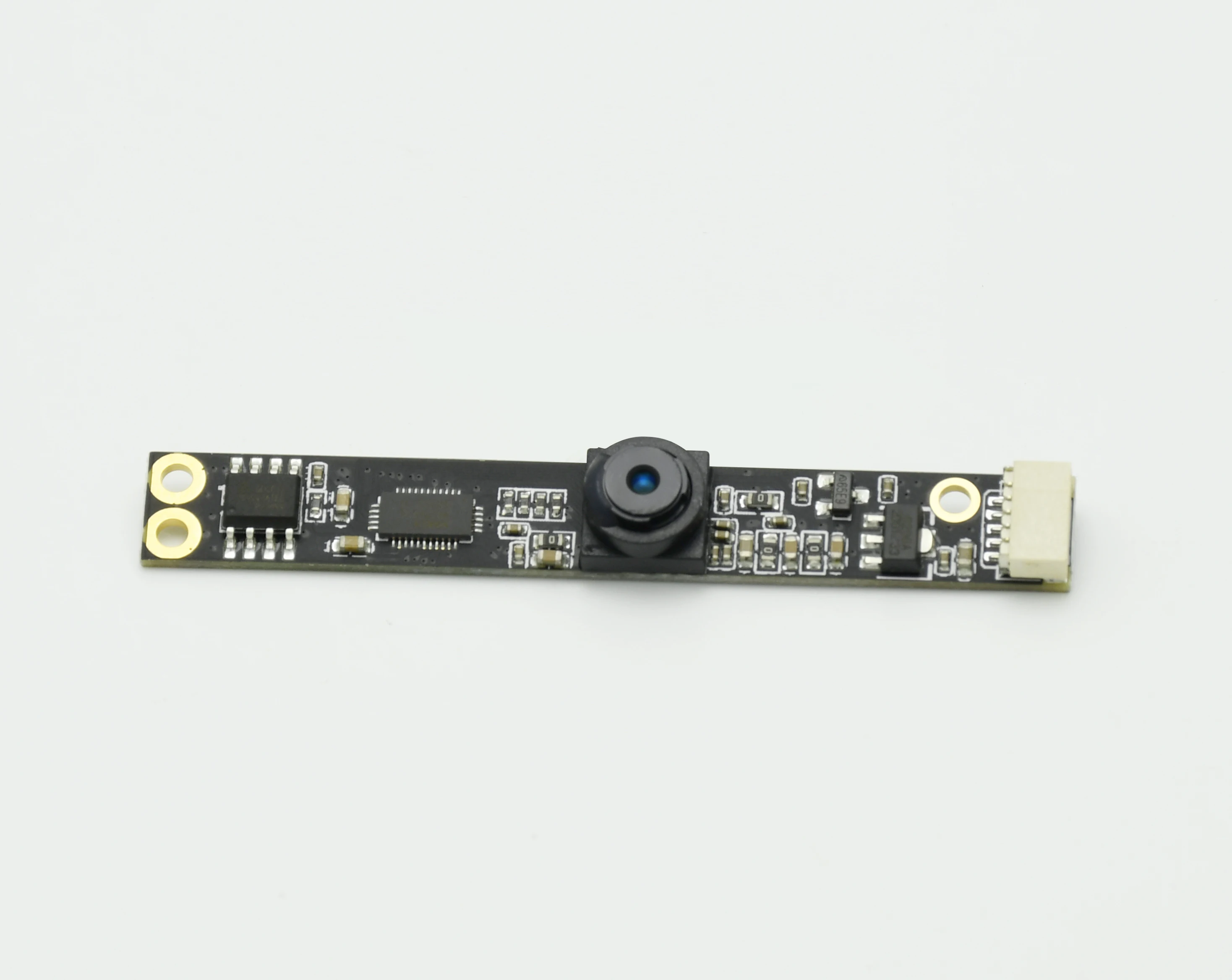

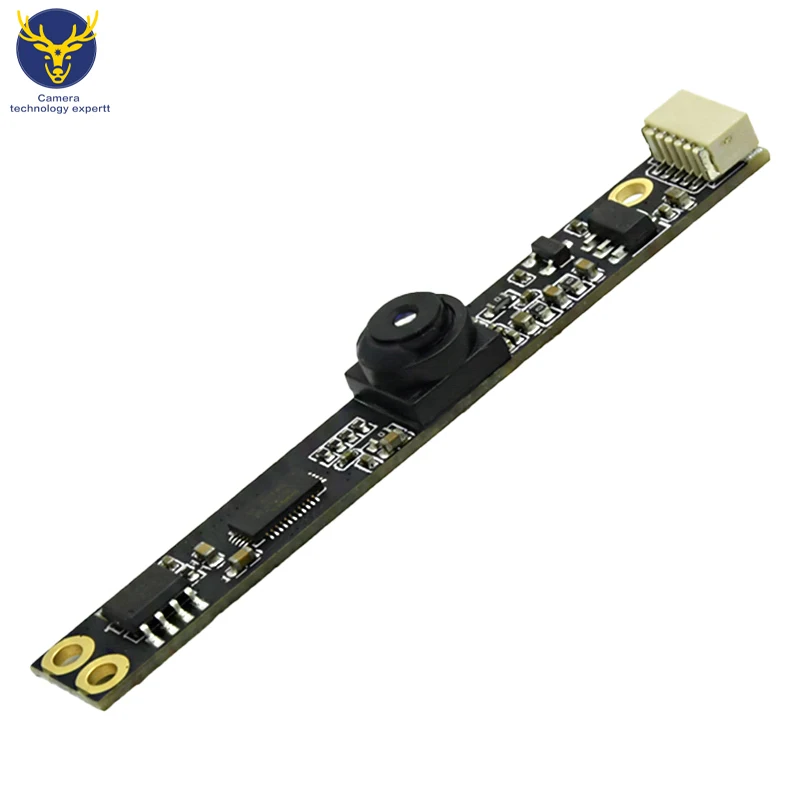

JSK-0A24-V3.0(I01)
Monocular USB2.0 Camera Module
1 Mega Pixels HD 720P Mini Color USB2.0 Camera Module for Camera
Features:
* 1280 (H) x 720 (V) resolution USB2.0 Camera module
* GC1064(1/4” CMOS) sensor for high quality image
* With HD 63 degree no distortion lens(Optional)
* High frame rate – MJPEG 1280*720 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 60mm*8mm*6.2mm for embedded application
* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
Adopt USB communication interfaceTransmission speed is greater than 400MB/SSay goodbye to the traditional slow lag
Use GC1064(1/4” CMOS) Sensor
High signal-to-noise ratio
1 Mega Pixels
It supports 30FPS at 1280*720 resolution, and the imaging quality is quite excellent
Aperture：F2.4
FOV: 63 Degree
Wide Dynamic Range: TBD
Our camera module can help you realize edge computing, provide access and analysis capabilities for smart cameras, support vehicle, object, non-motor vehicle, behavior and other algorithm integration analysis, algorithm free scheduling, data edge convergence, edge analysis , Edge autonomy, cloud edge collaboration capabilities. To
Product Features
Picture access support
Support the secondary development access of mainstream manufacturers and other equipment SDK
Algorithm scheduling
Single-channel camera equipment can support any combination of various algorithms such as image analysis, identity verification, and vehicle identification, and flexible scheduling
Insight
Support image analysis, output structured data, search according to conditions, support record export
Data Security
Data security push, encrypted storage, desensitization display
Product Features
Picture access support
Support the secondary development access of mainstream manufacturers and other equipment SDK
Algorithm scheduling
Single-channel camera equipment can support any combination of various algorithms such as image analysis, identity verification, and vehicle identification, and flexible scheduling
Insight
Support image analysis, output structured data, search according to conditions, support record export
Data Security
Data security push, encrypted storage, desensitization display
Certifications
Company Profile
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Why choose us?1. Leading and professional manufacturer in CCTV industry since 2005.2. 6 years of R&D and production experience3. OEM & ODM4. High Quality(material)5. Competitive and reasonable price6. Fast Delivery7. Best pre-sale, sale and after-sale service8. 2 year warranty and lifetime maintenance9. CE,FCC,RoHS,ISO9001-2008 passed
Additional information
| Type | Camera Module |
|---|---|
| Application | Indoor, Outdoor |
| Video Format | MJPG/YUY2 |
| AEC/AGC/White Balance | Auto |
| Color Filter | RGB Bayer pattern |
| Object Distance | 100cm |
| Pixel Size | 1.75um |
| Video Resolution | 30fps@720p |
| Image Sensor | 1/4" CMOS |
| Product name | JSK-0A24-V3.0 USB Canera Module |
| Customized support | Online technical support, OEM, ODM, Software reengineering |
| Data Storage Options | Cloud |
| Resolution | 1280 (H) x 720 (V) |
| Video Compression Format | MJPG, YUY2 |
| Function | Wide Angle, Face Recognition |
| Network | SDK, USB |
| Special Features | Face Recognition, Motion Detection |
| Warranty | 1 Year |
| Model Number | JSK-0A24-V3.0(I01) |
| Brand Name | JinShiKang |
| Place of Origin | Guangdong, China |
| Style | Mini camera, Camer Module |
| Sensor | CMOS |
| Mini Camera 1MP HD 30fps@720p | Driver-Free USB camera module with Standard UVC Protocol |
